Details

Surge protector for network

Computer network signal surge protector is designed according to the standard of IEC electric surge protector.It is considered fully that the electrode capacitance and distributed capacitance would lesson data signal with small insertion loss and lower output residual voltage.It has superior transmisson performance ,quick action,less insertion loss,RJ45 interface,4 wires and 8 wires protection and 100M bandwidth.

Model	HD-XNET-RJ45/4	HD-XNET-RJ45/8
Rated voltage un	5V	12V
Maximum sustained voltage Uc	12V	15V
Nominal discharge current In（8/20ms）	2.5KA	300A
Maximum discharging current Imax（8/20ms）	5KA	600A
Voltage protection level Up	（X-X）≤70V	（X-X）≤85V
Voltage protection level Up	（X-G）≤400V	（X-G）≤85V
Series impedance R	1Ω	無

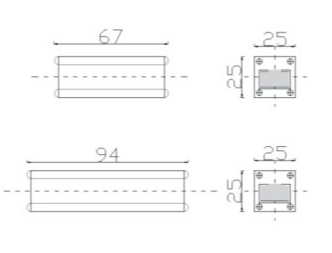

Dimension	94×25×25mm	67×25×25m
Response time Ta	≤1ns
Insertion loss	≤0.2dB
Operating temperature range Tup	-40℃至+70℃
Number of guard wire	1,2,3,6 wire	8-wire full protection
Protection grade	IP20
Sheathing material	Shielding metallic aluminum
Mode of connection	Connection in series
Interface mode	RJ45

Installation method：

Put an arrester in series at the leading end of the line interface of the protected equipment.”O(jiān)UT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
