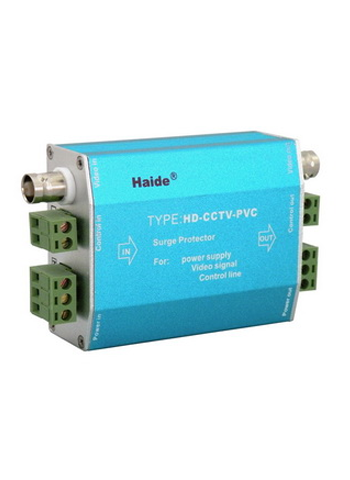

This product is suitable for the monitoring of the camera's video signal lines, control lines and power line of lightning surge protection. It can combine the
above mentioned lightning protection function into one. Its housing adopts integrated aluminum-alloy structure with small volume and ultra low residual pressure output.Its design is fully considered that the electrode capacitance and distributed capacitance would lessen data signaling with small insertion loss which can satisfy
the requirement of video signal transmission and Has the advantage of quick response to transient overvoltages.
|
Model
|
HD-CCTV-PVC
|
|
Protective link
|
Video line
|
Power line
|
Control line
|
|
Nominal working voltage Un
|
±5V
|
12V
|
24V
|
220V
|
6.8V
|
12V
|
24V
|
|
Maximum continuous working voltage Uc
|
±6.8V
|
16V
|
32V
|
275V
|
7.5V
|
15V
|
32V
|
|
Nominal discharge current In（8/20ms）
|
2.5/5/1.5KA
|
5KA
|
2.5KA/5KA/1.5KA
|
|
Maximum discharging current Imax（8/20ms）
|
5/10/3KA
|
10KA
|
5KA/10KA/3KA
|
|
Voltage protection level Up
|
X-X：40/75/35V
|
|
80V
|
110V
|
50V
|
|
X-G：400V
|
400V
|
400V
|
400V
|
|
Limiting voltage Up
|
|
55V
|
160V
|
1.1KV
|
|
|
Rated load current IL
|
|
1.5A
|
1A
|
|
Drain current IA
|
|
≤5цA
|
|
|
Response time Ta
|
≤1ns
|
≤25ns
|
1ns
|
|
Insertion loss
|
≤0.2dB
|
|
≤0.2dB
|
|
Insertion resistance
|
≤4Ω
|
≤4Ω
|
|
Band width FG
|
40MHZ
|
|
|
Message transmission rate Vs
|
|
|
2MHZ
|
|
Protection grade
|
IP30
|
|
Operating temperature range Tup
|
-40℃to+70℃
|
|
Dimension
|

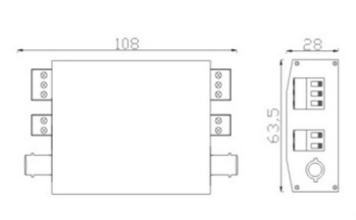

108×63.5×28mm
|
|
Sheathing material
|
Shielding metallic aluminium
|
|
Interface mode
|
BNC
|
Connecting terminal
|
Connecting terminal
|
Installation method：
Put an arrester in series at the leading end of the line interface of the protected equipment.”O(jiān)UT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω).
